HMX-1



HOK assigned to HMX-1  - a historical overview





MARINES     HMX-1

Jan 1956 - July 1963



MCAS Quantico, VA



mid Feb 1956 - 22 Mar 1956

 FIP Program (Field Indoctrination program), the purpose was three-fold :

  1. To indoctrinate assigned Marine Corps personnel in the operation and maintenance techniques of the HOK-1 helicopter and its installed and associated equipment.
  2. To report operating and major discrepancies revealed during an accelerated flight program.
  3. To recommend changes which would improve the operational suitability of HOK-1 helicopters for Marine Corps use.

Six HOK-1 aircraft :  129803, 129811, 129816, 129820, 129821, 129823, flew a total of 685 hours during 445 flights , over a period of 27 working days.

Pilot check out, Internal weight famialization, Altitude flights,  Static and Electrical hoist, Litter famialization,

Rough area famialization, Navigation, Night famialization.

The pilots were checked out in the operation of the helicopter and its installed and associated equipment by KAC Test Division, after the initial check out period of flying was done by pilots and crewmen. The maintenance men were checked out by the combined efforts of KAC Service Department, KAC service representatives, factory and instructors and members of KAC Engineering staff. In addition one KAC test pilot was assigned to the project during the entire period.

This project demonstrated, that it was feasible to maintain and operate a squadron of HOK-1 helicopters on a schedule comparable to that of a VMO squadron. While recognizing certain deficiencies in the HOK-1 helicopter, the consensus of the participating FIP personnel was that it was an improvement over current VMO helicopters.

The flight qualities of the HOK-1 helicopter were excellant in winds up to 25 knots and satisfactory up to 40 knots. In gusty winds over 40 knots special pilot technique of all controls, especially the rudder, is necessary. Cross wind landings in fields in winds about 25 knots is not desirable. A feature of the aircraft is that through use of trim tab, control pressure may be reduced to a minimum in all flight conditions.

The autorotation characteristics of the HOK-1 are excellant. 2 hours familiarization all pilots considered fully qualified in this respect.

25 May 1956 - 06 Jul 1956

HOK Carrier Evaluation Program on board the U.S.S.Siboney (CVE-112) during the period 25 May to 6 July 1956. HOK-1 129806 and 129823 (both with HMX-1 pilots and crew) were flown from Bloomfield to Norfolk, VA and landed on board the Siboney. They were assigned as  "Angels" for evaluation of plane guard duty and had been modified at KAC to incorporate wide doors, cabin platforms, cargo slings and personnel hoists. On 26 May the Siboney departed Norfolk, VA for the mediterranean area to take part in joint Navy-Marine maneuvers. On 01 June the HOK's were flown from the carrier, which then was near the Azores, for the first time. Flights were made up to 07 June, when the Siboney anchored in Augusta Bay, Sicily. Here, hoist "rescues" were undertaken. On 09 June the carrier anchored in Suda Bay, Crete, Greece -  5.5 hours were flown here as "Angels". On 11 June anchored in Dikili, Turkey and on 12 June the joint Navy-Marine maneuvers began. The HOK's flew "Angels" missions and a Turkish Air Force Major was given a ride in 129806. On 13 June HOK's made night flights from the Siboney. On 14 June the carrier anchored off Izmir, Turkey. The HOKs were shown to 25 Turkish officials. From 15 to 19 June the Siboney was in Athens, Greece. On 25 June the HOK's flew missions while the carrier was at Tanger, Morocco.No further flights were made during the Atlantic crossing back home to Norfolk, VA. Here, on 06 July, both HOK's flew "Angels" missions and departed to MCAS Quantico, VA.

Assigned  aircraft :

129820  19 Jan 1956  -  05 Jan 1959      "XM 33"                               129825  06 Jan 1959  -  13 Sep 1961      "33"

129803  10 Feb 1956  -  12 Apr 1956                                                  129803  30 Apr 1959  -  01 Jun 1961

129811  09 Feb 1956  -  12 Apr 1956                                                  139976  19 Mar 1961  -  18 Apr 1961

129821  09 Feb 1956  -  12 Feb 1957      "XM 34"                              139991  02 Jun 1961  -  09 Jul 1963

129823  09 Feb 1956  -  **13 Mar 1959      "XM 35"                            129822  13 Sep 1961  -  17 Apr 1963

129816  21 Feb 1956  -  12 Apr 1956                                                  139997  04 Oct 1961  -  08 Jul 1963

129806  25 May 1956  -  **18 Oct 1956                                                139992  12 Oct 1961  -  26 Jun 1962     "33"

139994  17 Oct 1957  -  27 Feb 1958                                                  139978  12 Oct 1962  -  08 Jun 1963     "33"

129802  02 Jul 1958  -  03 Mar 1961

129813  05 Nov 1958  -  16 Mar 1961       "XM 31"

** 129806 was assigned to CVE 112 "Siboney"  for flight tests as of 25 May 1956

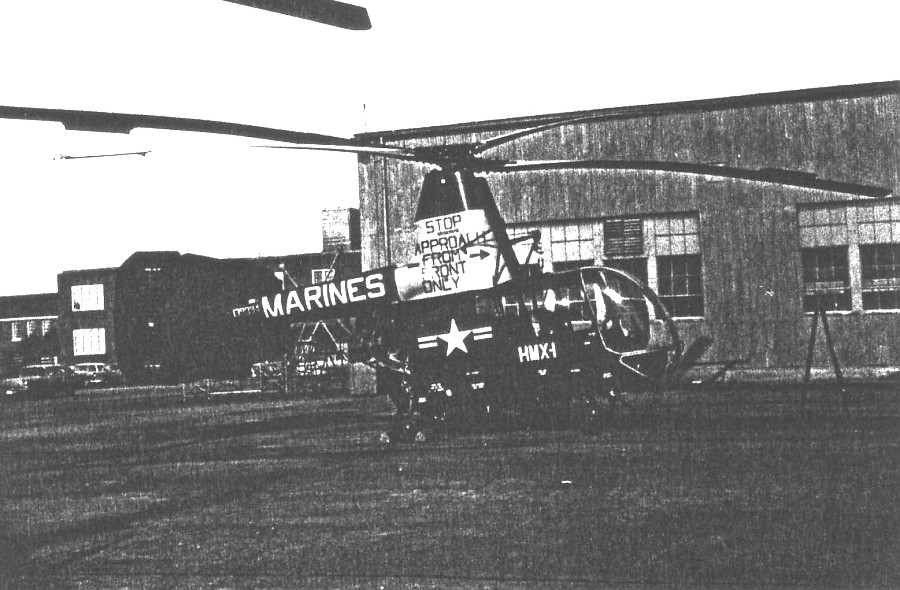

photo of  "XM 30"  , possibly 129816







129820 XM33 HMX1 KamanPhoto viaSeanCarroll

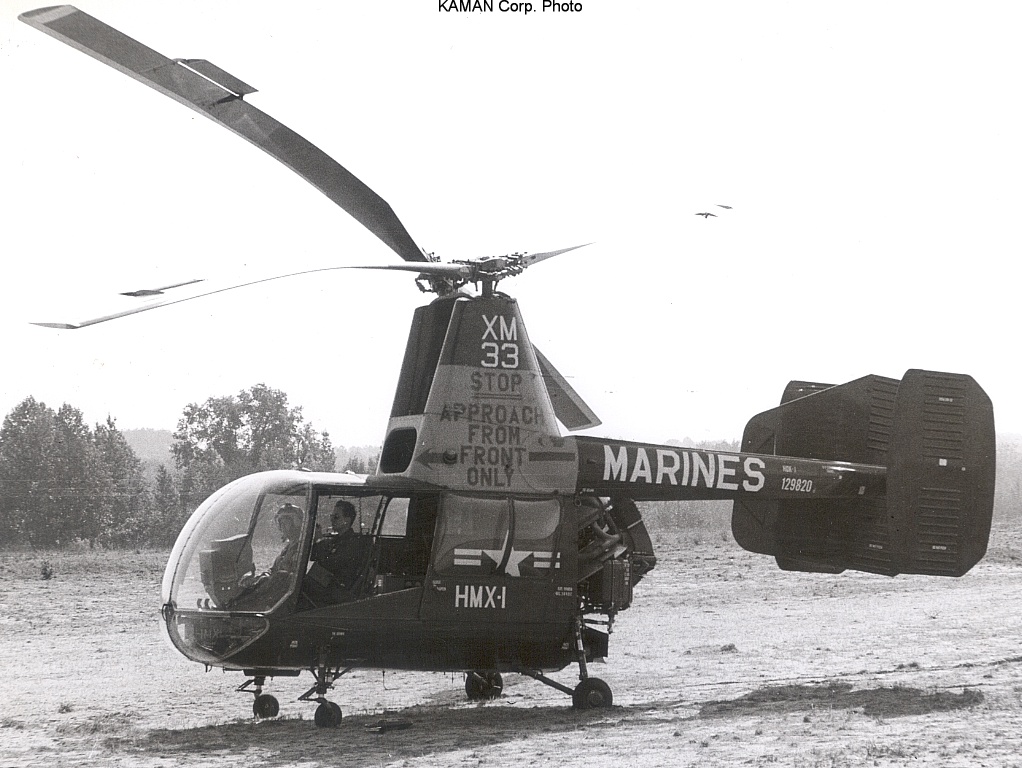

HOK-1  129820  XM 33  HMX-1   - Kaman Photo, via Sean Carroll



129821 XM34 HMX1 NatArchives coll Mutza

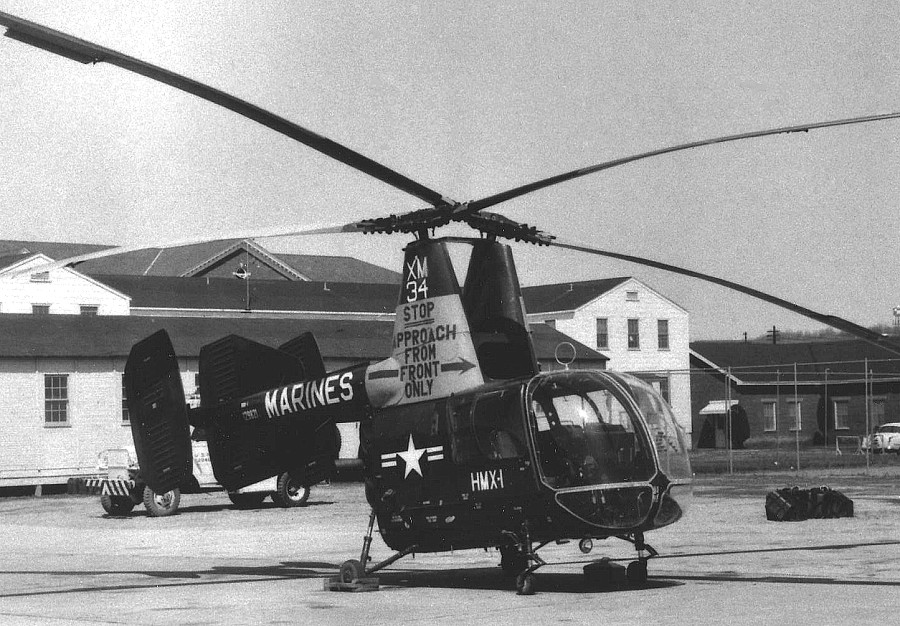

HOK-1  129821  XM 34   HMX-1 -  Photo MarineCorps A35013 , coll. W. Mutza



129823 XM35 HMX1 MAPhoto EBay15

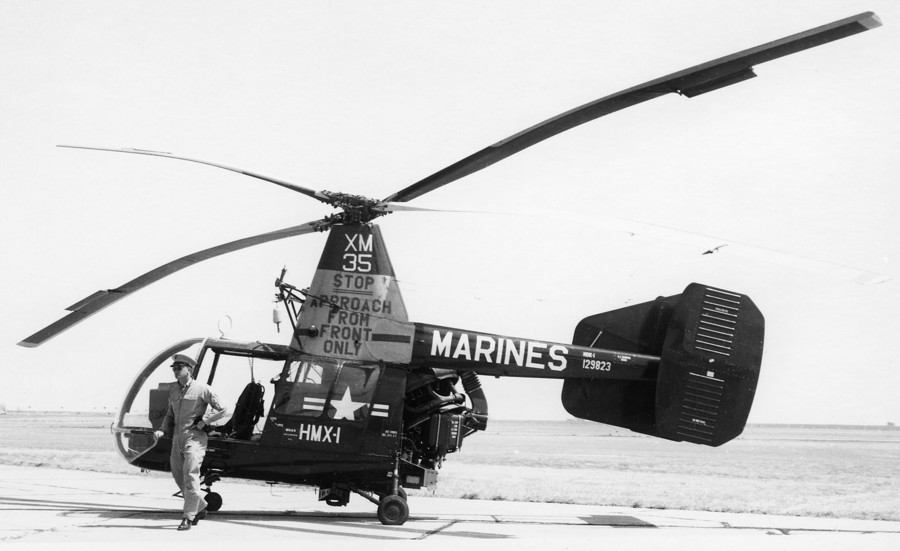

HOK-1  129823  XM 35   HMX-1   -  MAP photo,  EBay auction 2015



139994 HMX1 coll Mutza

HOK-1   139994   HMX-1   ca. 1957-1958  -    photo  coll.  W. Mutza



129825 33 HMX1 33 probQuantico May59 HTenby

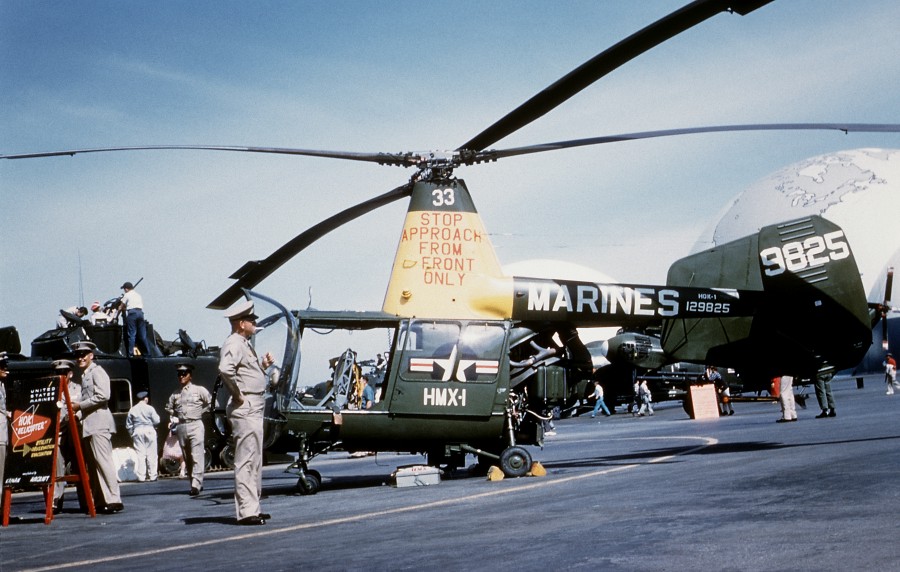

HOK-1  129825  33   HMX-1 33  ,  May 1959  -  photo coll. Ragay





139992 33 HMX1 23Jun62 USMCPhA530120 coll Mutza

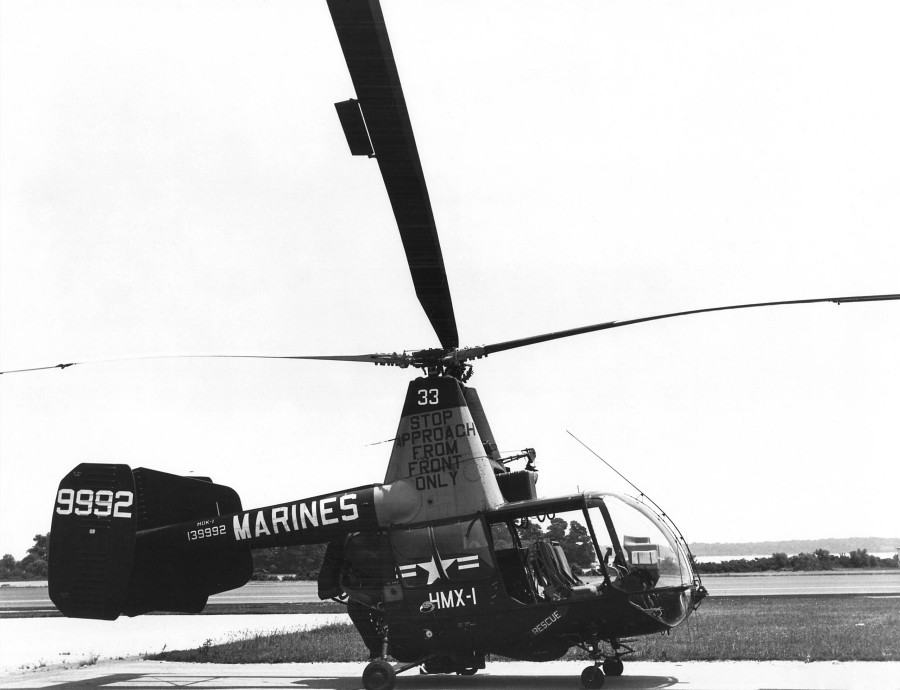

OH-43D  139992  33   HMX-1    23 Jun 1962  -

USMC Photo A530120,  coll.  W. Mutza



139978 33 HMX1 Nov62 DaveLucabauti viaMutza

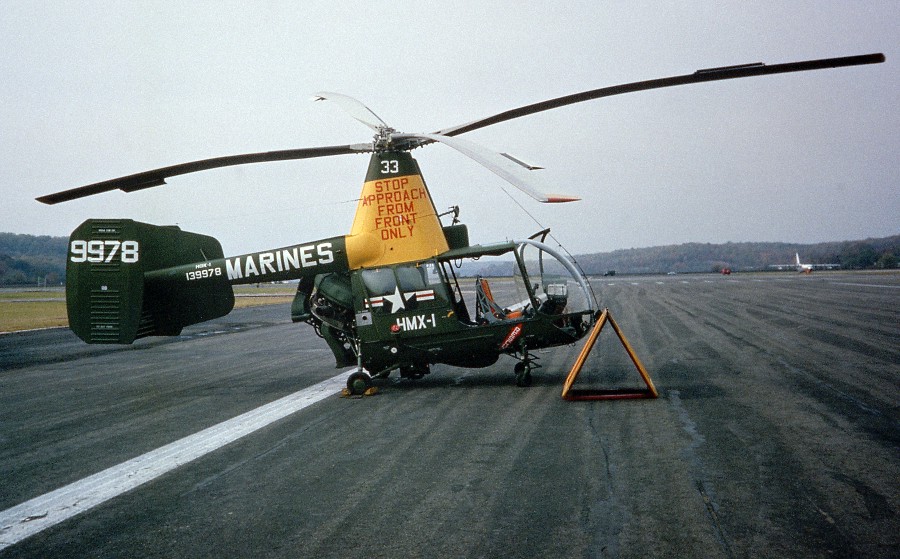

OH-43D  139978  33   HMX-1   Nov 1962  -

Photo by Dave Lucabauti,  via  W. Mutza
